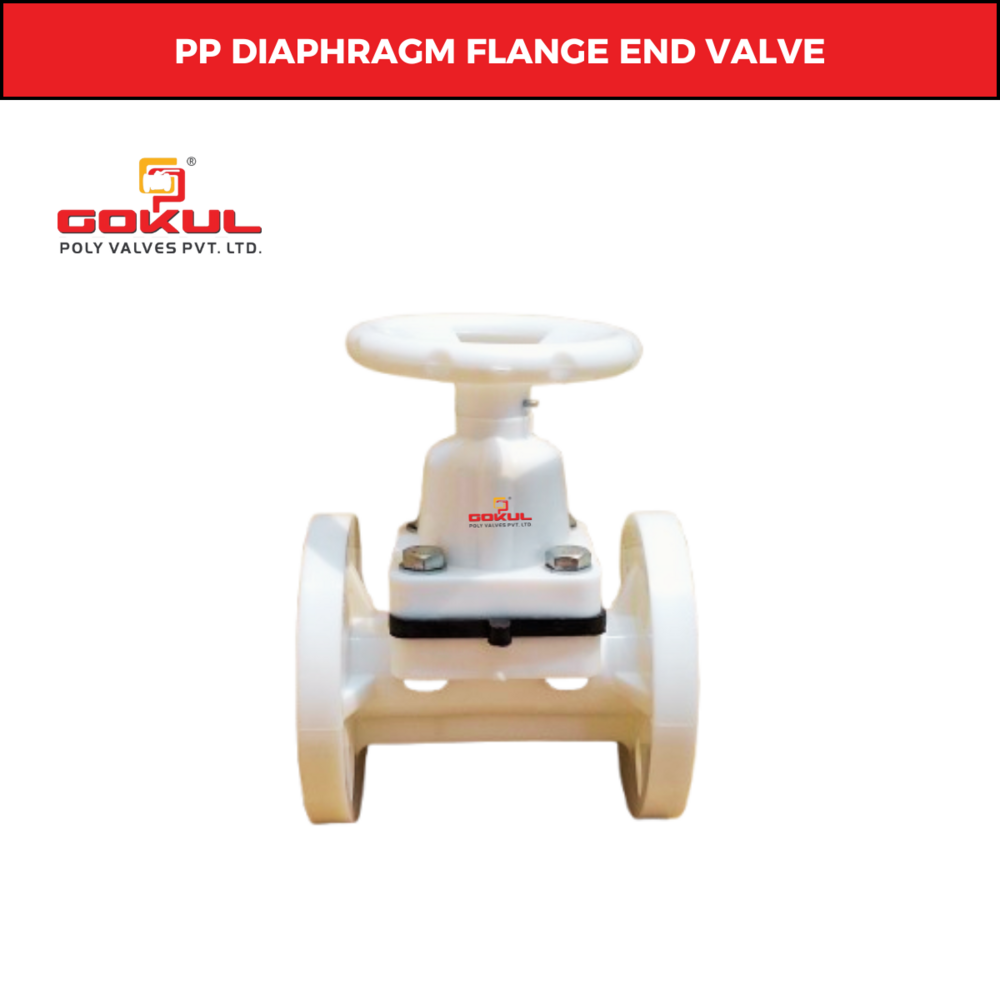

Gokul PP Diaphragm Valve Flanged 3"

1870 INR/Number

Get a Price/Quote

Product Details:

Color White
Usage Industrial & Water Application
Caliber Gokul Poly Valves Pvt Ltd
Structure Ball
Connection Flanged
Size 3"-80MM
Pressure Medium Pressure
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Gokul PP Diaphragm Valve Flanged 3" Price And Quantity

Minimum Order Quantity 10 Number
Price Range 1870.00 - 1870.00 INR/Number
Price 1870 INR/Number

Gokul PP Diaphragm Valve Flanged 3" Product Specifications

Connection Flanged
Structure Ball
Caliber Gokul Poly Valves Pvt Ltd
Usage Industrial & Water Application
Flange 150 class
Color White
Product Type PP Diaphragm Valve Flange End
Channels Intentional & Domestic Market
Port Size 3"-80MM
Temperature of Media 80 Celsius (oC)
Finish Polypropylene (PP)
Media Water
Pressure Medium Pressure
Application industrial and water application
Material Plastic
Size 3"-80MM

Gokul PP Diaphragm Valve Flanged 3" Trade Information

FOB Port Ahmedabad
Payment Terms Cash Advance (CA) Cash in Advance (CID) Cheque
Supply Ability 10 Number Per Day
Delivery Time 1 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details BOX PACKING
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications ISO & Material Test Certificate

Product Description

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1
