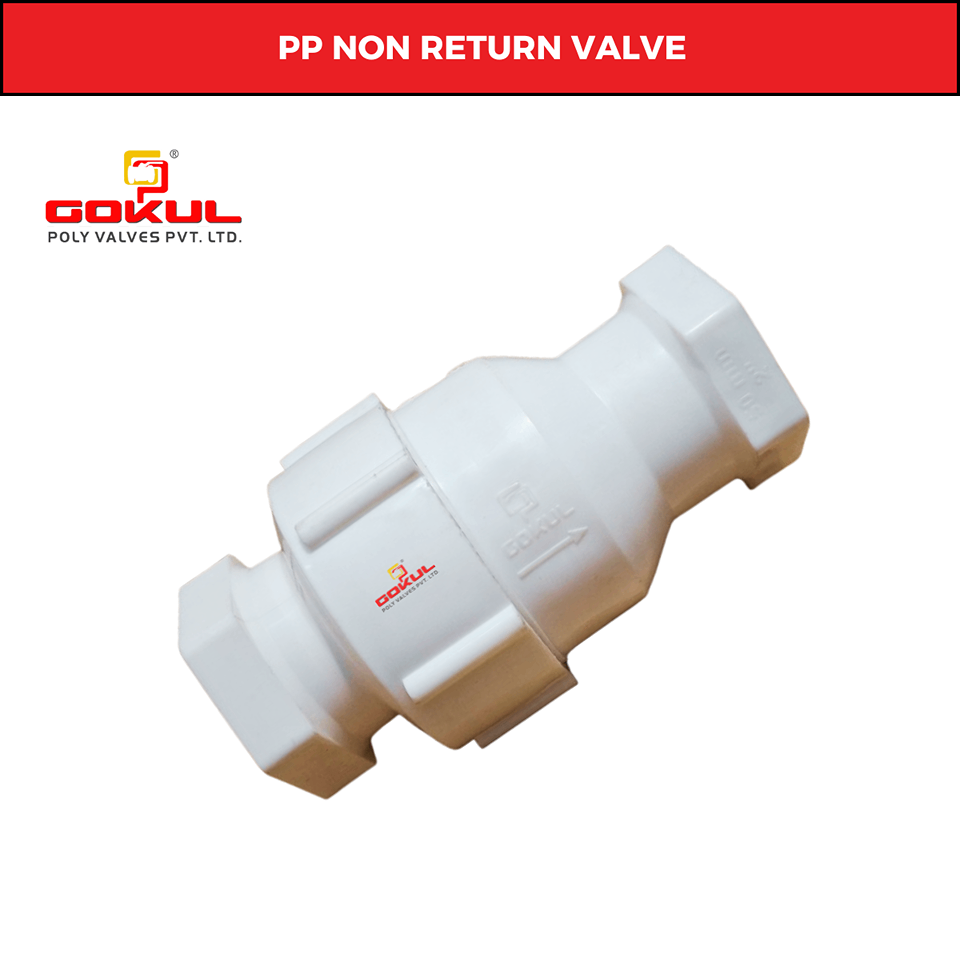

Gokul Polypropylene Nrv Flanged End Valve

Price 560 INR/ Number

Get a Price/Quote

Gokul Polypropylene Nrv Flanged End Valve Specification

  • Channels
  • Intentional & Domestic Market
  • Pressure
  • Medium Pressure
  • Structure
  • Ball
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Connection
  • Flanged
  • Usage
  • Industrial & Water Application
  • Material
  • Plastic
  • Size
  • 1" To 12"
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Non Return Valve Flanged
  • Port Size
  • 1" To 12"
  • Color
  • White
  • Flange
  • 150 class
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul Polypropylene Nrv Flanged End Valve Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 100 Per Day
  • Delivery Time
  • 2 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul Polypropylene Nrv Flanged End Valve

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Top Body Polypropylene 1 2) Bottom body Polypropylene 1 3) Ball Polypropylene 1 4) Ball Ring Polypropylene 1 5) Seat Ring Neoprene Rubber 1 6) Stud, Nut & Washer SS Req.

FAQs of Gokul Polypropylene Nrv Flanged End Valve:


Q: What is the pressure rating of the Gokul Polypropylene Nrv Flanged End Valve?

A: The Gokul Polypropylene Nrv Flanged End Valve is designed for medium pressure applications.

Q: What types of applications is this valve suitable for?

A: This valve is suitable for industrial and water applications.

Q: What is the maximum temperature of media the valve can handle?

A: The valve can handle media with temperatures up to 80C.

Q: What is the range of port sizes available for this valve?

A: The Gokul Polypropylene Nrv Flanged End Valve is available in port sizes ranging from 1 inch to 12 inches.

Q: What material is used for constructing this valve?

A: The valve is constructed using polypropylene (PP) plastic material.

Q: What is the connection type of this valve?

A: The connection type of this valve is flanged with a 150-class flange.

Q: What color is the Gokul Polypropylene Nrv Flanged End Valve?

A: The valve is available in white color.

Gokul Polypropylene Nrv Flanged End Valve
Gokul Polypropylene Nrv Flanged End Valve
Gokul Polypropylene Nrv Flanged End Valve
Gokul Polypropylene Nrv Flanged End Valve
Gokul Polypropylene Nrv Flanged End Valve
Gokul Polypropylene Nrv Flanged End Valve
Gokul Polypropylene Nrv Flanged End Valve
Gokul Polypropylene Nrv Flanged End Valve
Gokul Polypropylene Nrv Flanged End Valve
Gokul Polypropylene Nrv Flanged End Valve
Gokul Polypropylene Nrv Flanged End Valve
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

PP Foot Valve Screw End

PP Foot Valve Screw End

Price 300 INR / Number

Minimum Order Quantity : 10

Size : 1" To 4"

Product Type : PP Foot Valve Screw End

Finish : Polypropylene (PP)

Application : industrial and water application

Get a Price/Quote

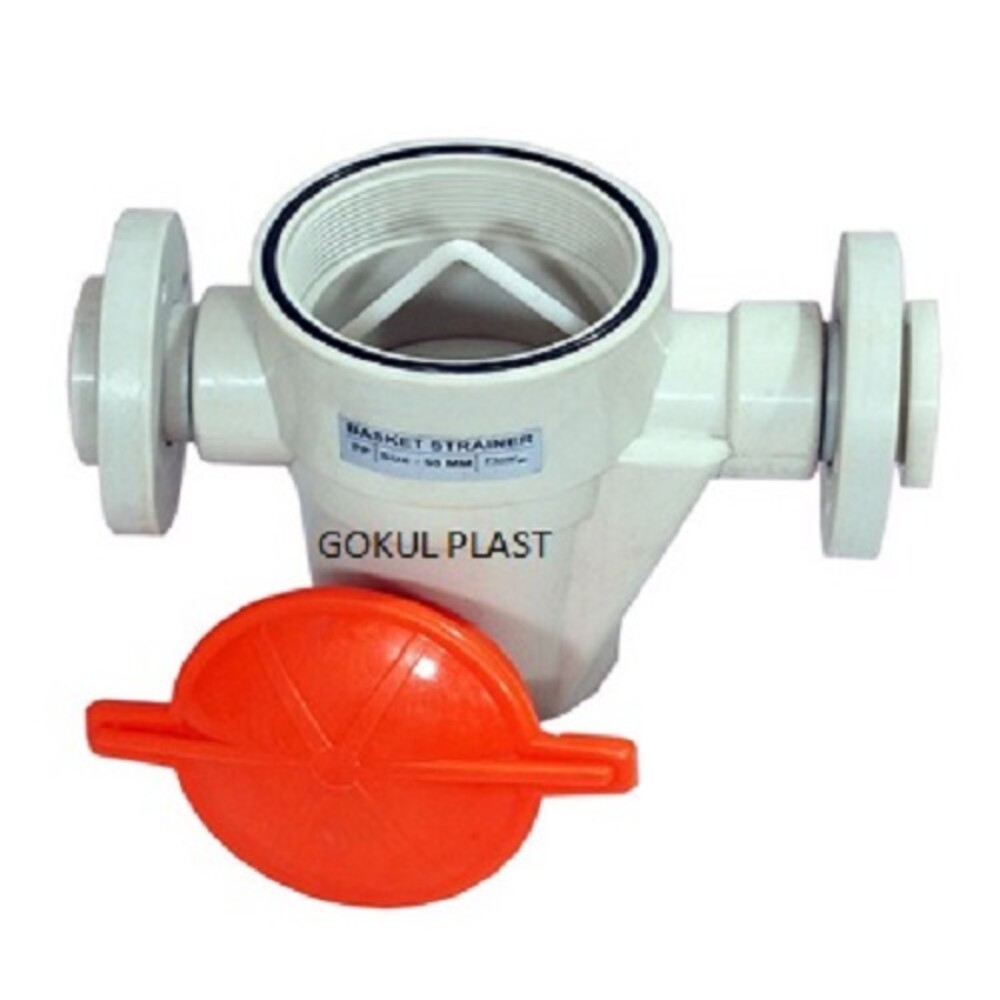

PP Basket Type Strainer
