Polypropylene sight Glass Flanged Ends

Price 15000 INR/ Number

Get a Price/Quote

Polypropylene sight Glass Flanged Ends Specification

  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Structure
  • Ball
  • Channels
  • Intentional & Domestic Market
  • Connection
  • Flanged
  • Pressure
  • Medium Pressure
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Size
  • 1/2" To 12"
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Sight Glass Valve / PP Flow Indicator Valve
  • Port Size
  • 1/2" To 12"
  • Color
  • White
  • Flange
  • 150 class
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Polypropylene sight Glass Flanged Ends Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Polypropylene sight Glass Flanged Ends

Technical Specification Material Of Construction PP (Polypropylene) Construction 3 piece design, full bore, Tef lon seated, borosil glass Design 3 piece design Test pressure 8kg Max working temp 60 c (consistently) Size Range -15MM TO 12-315MM Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Side Piece/ Connector Polypropylene 2 2) Glss Tube Glass ( BOROSIL) 1 3) Crisent Ring PTFE (Tef lon) 2 4) Stud M.S./ S.S. REQ 5) Nuts wisher M.S./ S.S. REQ 6) Nut Cap Polypropylene REQ 7) Stud Tube PP / PVC Coated REQ

FAQs of Polypropylene sight Glass Flanged Ends:


Q: What is the port size availability for the Polypropylene Sight Glass Flanged Ends?

A: The port size for the Polypropylene Sight Glass Flanged Ends ranges from 1/2" to 12".

Q: What material is used to manufacture the Polypropylene Sight Glass Flanged Ends?

A: The material used is Polypropylene (PP), which is a type of plastic.

Q: What is the maximum temperature of media the product can handle?

A: The product can handle media temperatures up to 80C.

Q: What type of connection does the Polypropylene Sight Glass Flanged Ends have?

A: The connection type is flanged with 150 class flanges.

Q: What are the primary applications for the Polypropylene Sight Glass Flanged Ends?

A: The product is designed for industrial and water applications.

Q: What is the pressure specification of the product?

A: The Polypropylene Sight Glass Flanged Ends are designed to handle medium pressure.

Q: Which markets does the product cater to?

A: The product serves both international and domestic markets.

Polypropylene sight Glass Flanged Ends
Polypropylene sight Glass Flanged Ends
Polypropylene sight Glass Flanged Ends
Polypropylene sight Glass Flanged Ends
Polypropylene sight Glass Flanged Ends
Polypropylene sight Glass Flanged Ends
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

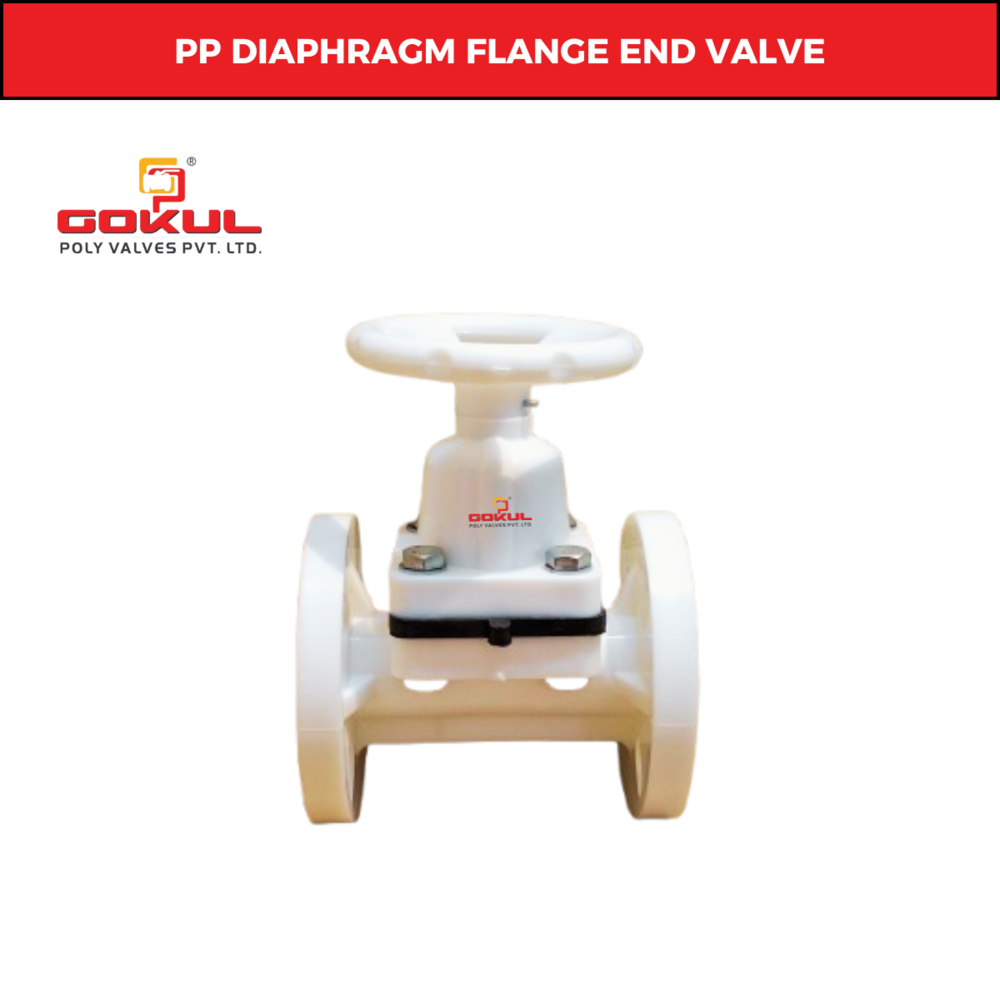

Gokul Polypropylene Diaphragm Valve Flange End 4
