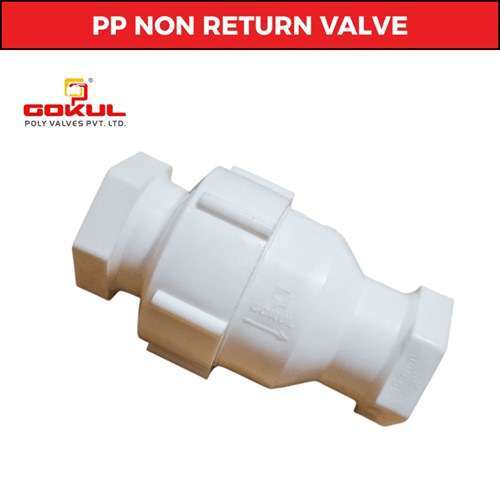

Polypropylene Non Return Valve Screwed End

Price 4235 INR/ Number

Get a Price/Quote

Polypropylene Non Return Valve Screwed End Specification

Structure
Ball

Pressure
Medium Pressure

Connection
Screw End (BSP Threaded)

Channels
Intentional & Domestic Market

Caliber
Gokul Poly Valves Pvt Ltd

Material
Plastic

Usage
Industrial & Water Application

Size
1" To 4"

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
PP Non Return Valve Screw End

Port Size
1" To 4"

Color
White

Flange
BSP Threaded

Finish
Polypropylene (PP)

Application
industrial and water application

Polypropylene Non Return Valve Screwed End Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Polypropylene Non Return Valve Screwed End

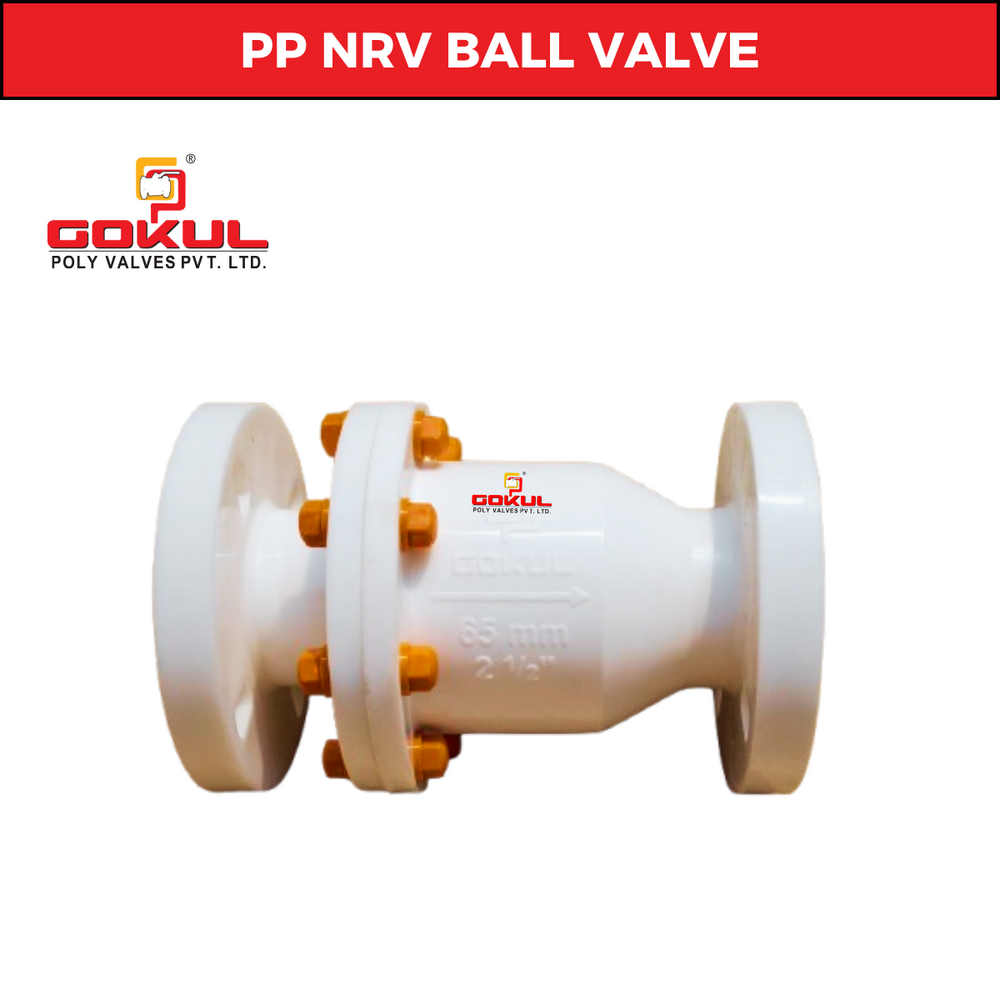

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY 1) Top Body Polypropylene 1 2) Bottam Body Polypropylene 1 3) Ball Polypropylene 1 4) Ball Ring Polypropylene 1 5) Seat Ring Neoprene Rubber 1 6) Stud, Nut & Washer SS Req.
