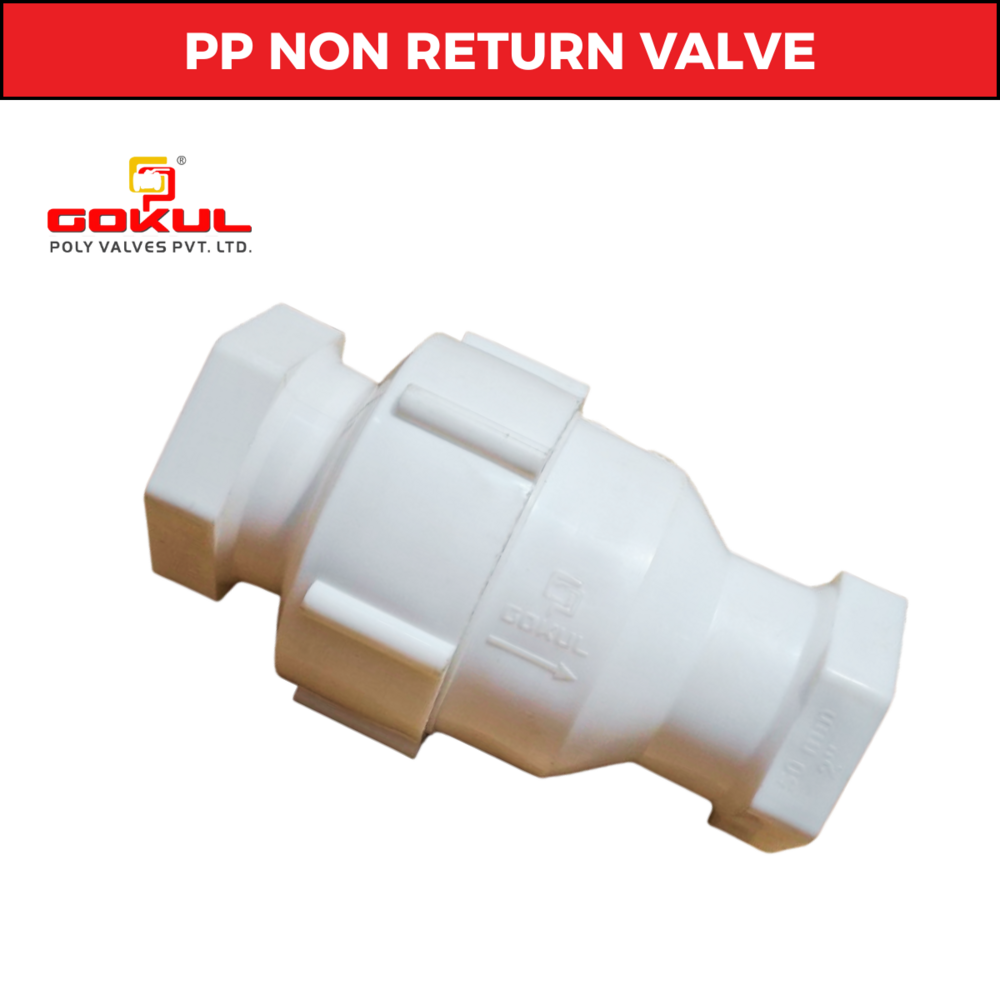

Gokul PP Non Return Valve Flanges

Price 10000 INR/ Number

Get a Price/Quote

Gokul PP Non Return Valve Flanges Specification

  • Connection
  • Flanged
  • Structure
  • Ball
  • Pressure
  • Medium Pressure
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Channels
  • Intentional & Domestic Market
  • Usage
  • Industrial & Water Application
  • Material
  • Plastic
  • Size
  • 1" To 12"
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Non Return Valve Flanged
  • Port Size
  • 1" To 12"
  • Color
  • White
  • Flange
  • 150 class
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul PP Non Return Valve Flanges Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul PP Non Return Valve Flanges

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Top Body Polypropylene 1 2) Bottom body Polypropylene 1 3) Ball Polypropylene 1 4) Ball Ring Polypropylene 1 5) Seat Ring Neoprene Rubber 1 6) Stud, Nut & Washer SS Req.

FAQs of Gokul PP Non Return Valve Flanges:


Q: What is the pressure range suitable for the Gokul PP Non Return Valve Flanges?

A: The Gokul PP Non Return Valve Flanges are designed for medium pressure applications.

Q: What are the available port sizes for this product?

A: The Gokul PP Non Return Valve Flanges are available in port sizes ranging from 1" to 12".

Q: What is the maximum temperature of media that this valve can handle?

A: The valve can handle media temperatures up to 80C.

Q: What type of connection does the Gokul PP Non Return Valve Flanges have?

A: This product features a flanged connection.

Q: What material is used in the construction of this valve?

A: The valve is made of polypropylene (PP) plastic.

Q: In which applications can the Gokul PP Non Return Valve Flanges be used?

A: This valve is suitable for industrial and water applications.

Q: What is the standard flange class for this valve?

A: The standard flange class for the Gokul PP Non Return Valve Flanges is 150 class.
