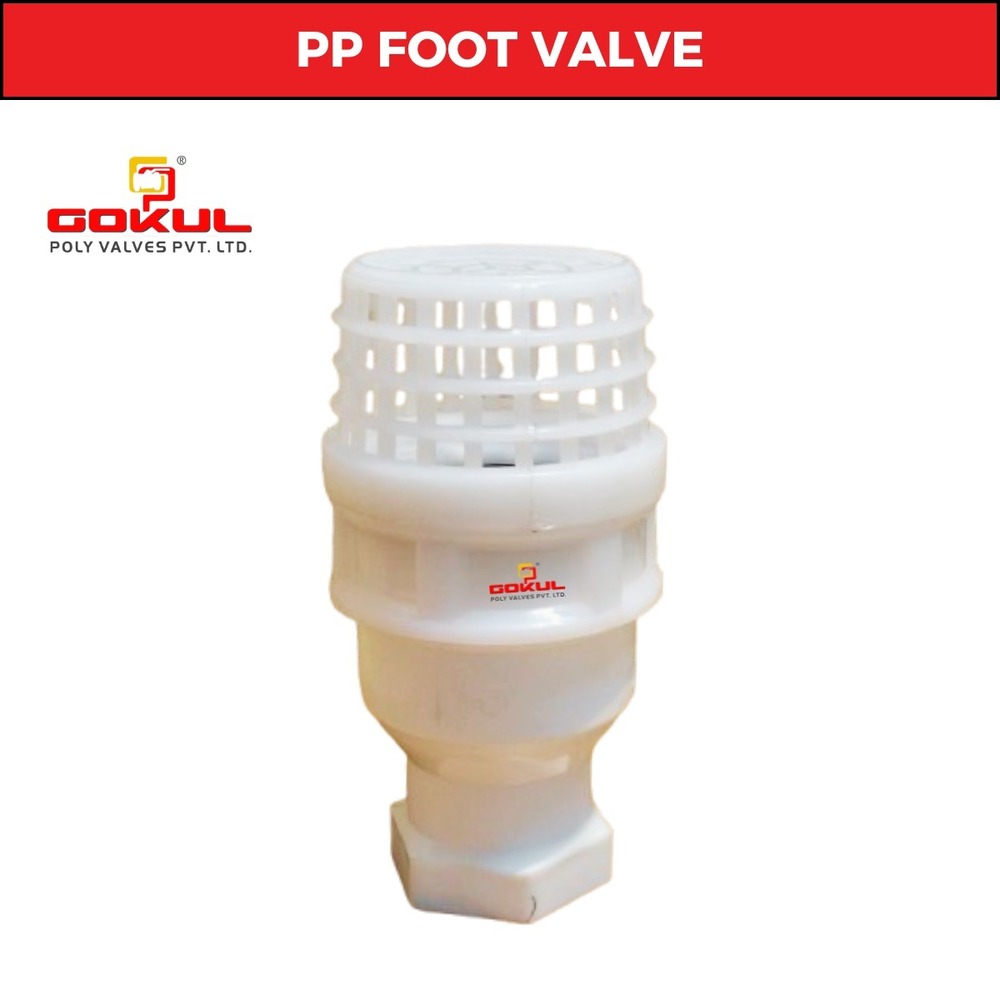

Gokul PP Foot Valve Screw End

Price 536 INR/ Number

Get a Price/Quote

Gokul PP Foot Valve Screw End Specification

Connection
Screw End (BSP Threaded)

Channels
Intentional & Domestic Market

Structure
Ball

Caliber
Gokul Poly Valves Pvt Ltd

Pressure
Medium Pressure

Material
Plastic

Usage
Industrial & Water Application

Size
1" To 4"

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
PP Foot Valve Screw End

Port Size
1" To 4"

Flange
BSP Threaded

Color
White

Finish
Polypropylene (PP)

Application
industrial and water application

Gokul PP Foot Valve Screw End Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Gokul PP Foot Valve Screw End

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Screw end (BSP thread) Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION QTY MATERIAL 1) Top Body 1 Polypropylene 2) Bottam Body 1 Polypropylene 3) Screen 1 Polypropylene 4) Ball 1 Polypropylene 5) Ball Ring 1 Polypropylene 6) Seat Ring 1 Neoprene Rubber 7) Stud, Nut & Washer Req. SS

FAQs of Gokul PP Foot Valve Screw End:

Q: What is the port size range available for the Gokul PP Foot Valve Screw End?

A: The Gokul PP Foot Valve Screw End is available in port sizes ranging from 1" to 4".

Q: What material is used for the construction of the Gokul PP Foot Valve Screw End?

A: The Gokul PP Foot Valve Screw End is constructed from polypropylene (PP) plastic material.

Q: What type of connection does the Gokul PP Foot Valve Screw End have?

A: The connection type for the Gokul PP Foot Valve Screw End is Screw End (BSP Threaded).

Q: What is the maximum temperature the Gokul PP Foot Valve Screw End can handle?

A: The Gokul PP Foot Valve Screw End can handle media temperatures up to 80C.

Q: What is the primary application for the Gokul PP Foot Valve Screw End?

A: The Gokul PP Foot Valve Screw End is suitable for industrial and water applications.

Q: What is the pressure rating for the Gokul PP Foot Valve Screw End?

A: The Gokul PP Foot Valve Screw End is designed for medium pressure usage.

Q: In what color is the Gokul PP Foot Valve Screw End available?

A: The Gokul PP Foot Valve Screw End is available in white.

Gokul PP Foot Valve Screw End

Gokul PP Foot Valve Screw End

Gokul PP Foot Valve Screw End

Gokul PP Foot Valve Screw End

Gokul PP Foot Valve Screw End

Gokul PP Foot Valve Screw End

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in Ball Products Category

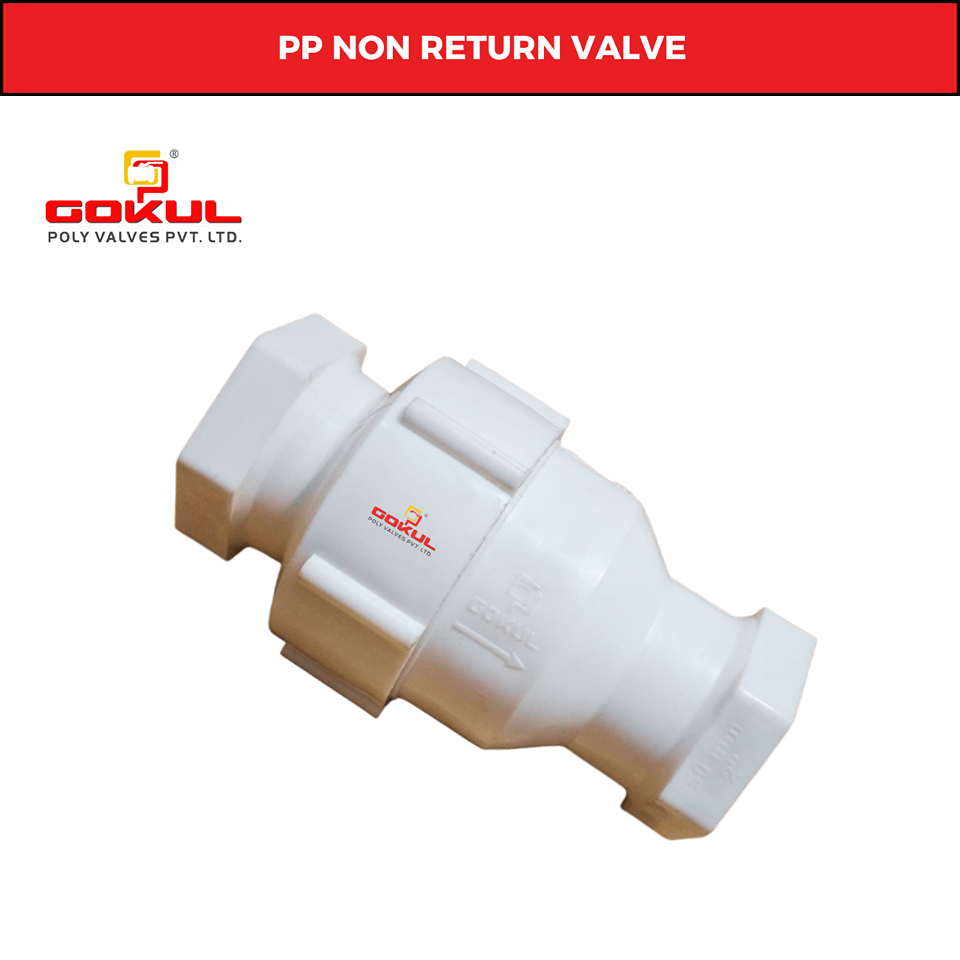

Polypropylene Screwed Non Return Valve
