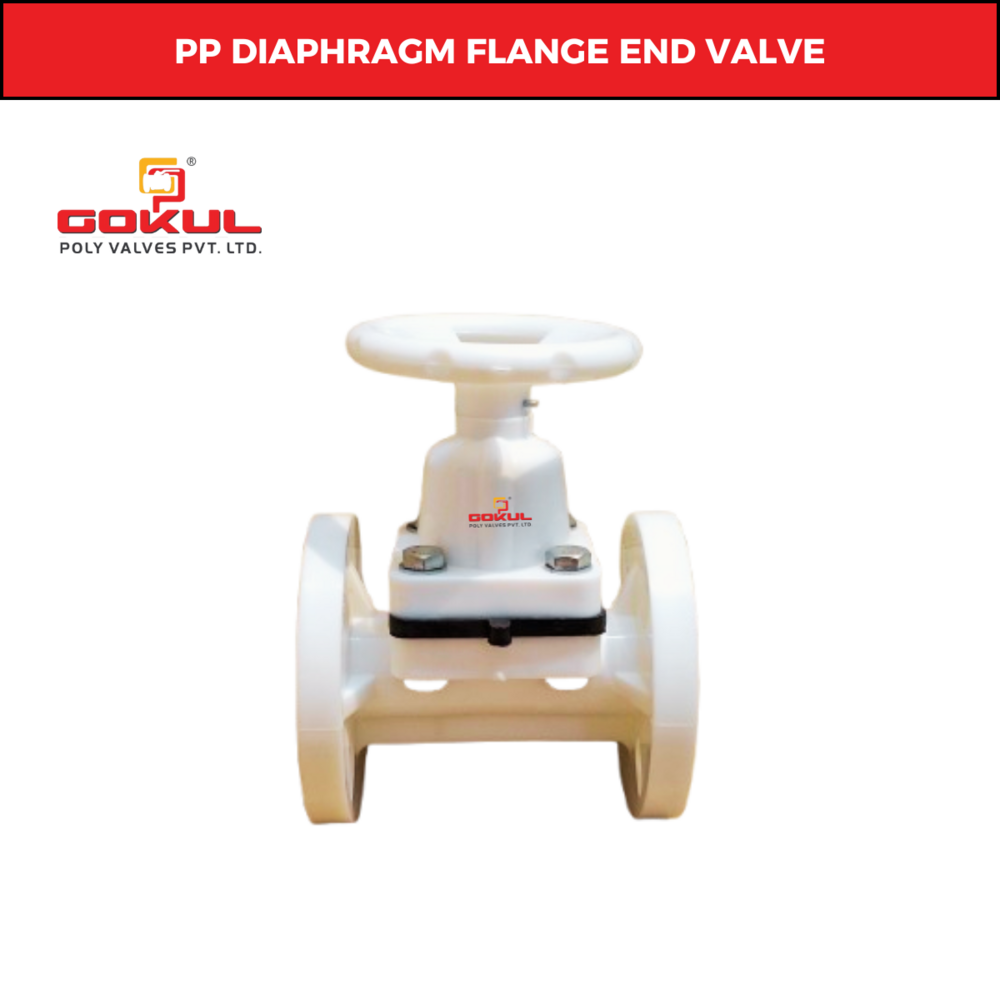

Gokul PP Diaphragm Valve Flanged 2"

690 INR/Number

Get a Price/Quote

Product Details:

Channels Intentional & Domestic Market
Product Type PP Diaphragm Valve Flange End
Usage Industrial & Water Application
Connection Flanged
Color White
Pressure Medium Pressure
Caliber Gokul Poly Valves Pvt Ltd
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Gokul PP Diaphragm Valve Flanged 2" Price And Quantity

Minimum Order Quantity 10 Number
Price 690 INR/Number
Price Range 690.00 - 690.00 INR/Number

Gokul PP Diaphragm Valve Flanged 2" Product Specifications

Media Water
Finish Polypropylene (PP)
Structure Ball
Size 2"-50MM
Port Size 2"-50mm
Color White
Application industrial and water application
Caliber Gokul Poly Valves Pvt Ltd
Pressure Medium Pressure
Flange 150 class
Usage Industrial & Water Application
Material Plastic
Connection Flanged
Channels Intentional & Domestic Market
Temperature of Media 80 Celsius (oC)
Product Type PP Diaphragm Valve Flange End

Gokul PP Diaphragm Valve Flanged 2" Trade Information

FOB Port Ahmedabad
Payment Terms Cash Advance (CA) Cash in Advance (CID) Cheque
Supply Ability 10 Number Per Day
Delivery Time 1 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Box Packing
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications ISO & Material Test Certificate

Product Description

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1
