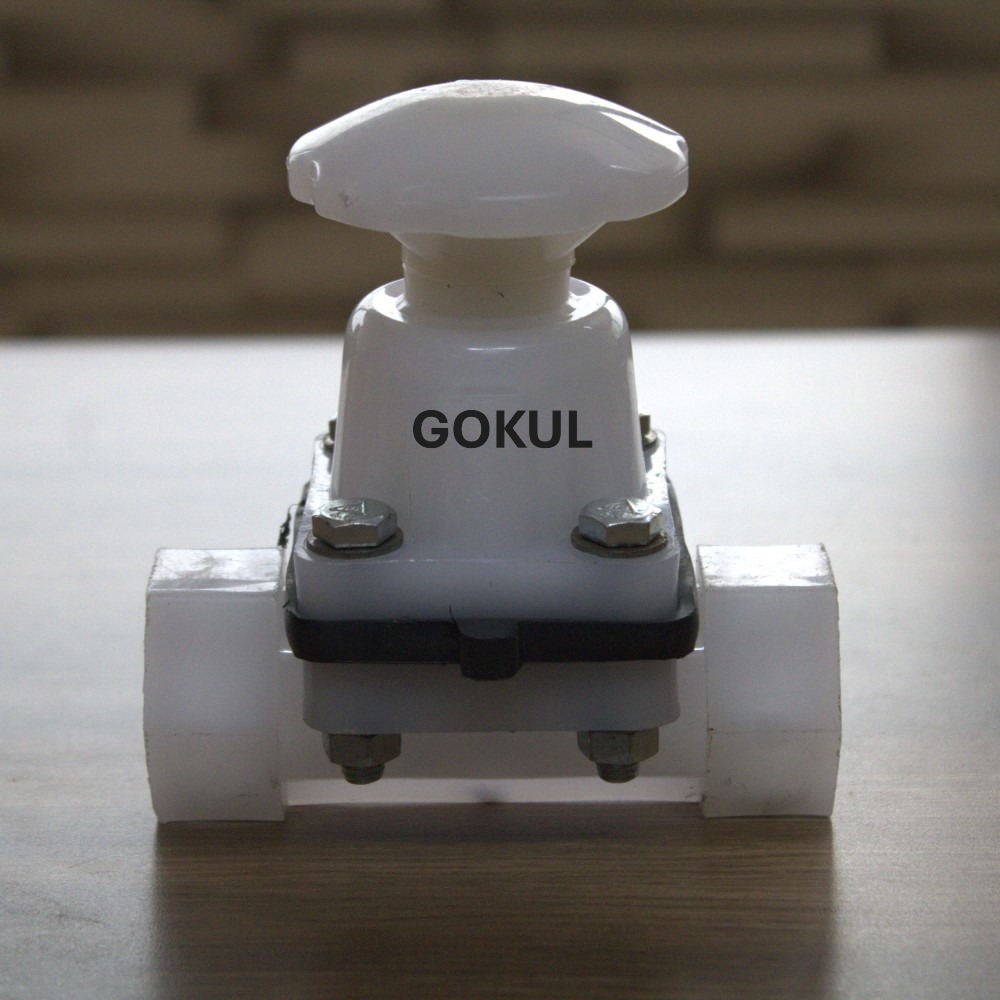

Flange End Pp Diaphragm Valve 1"

460 INR/Number

Get a Price/Quote

Product Details:

Size 1"-25MM
Connection Flanged
Caliber Gokul Poly Valves Pvt Ltd
Pressure Medium Pressure
Color White
Usage Industrial & Water Application
Structure Ball
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Flange End Pp Diaphragm Valve 1" Price And Quantity

Price 460 INR/Number
Price Range 460.00 - 460.00 INR/Number
Minimum Order Quantity 10 Number

Flange End Pp Diaphragm Valve 1" Product Specifications

Channels Intentional & Domestic Market
Product Type PP Diaphragm Valve Flange End
Finish Polypropylene (PP)
Port Size 1"-25MM
Structure Ball
Media Water
Usage Industrial & Water Application
Color White
Flange 150 class
Application industrial and water application
Pressure Medium Pressure
Temperature of Media 80 Celsius (oC)
Caliber Gokul Poly Valves Pvt Ltd
Connection Flanged
Material Plastic
Size 1"-25MM

Product Description

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification

No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1
